Approvals(认证):

Technical Data 技术参数

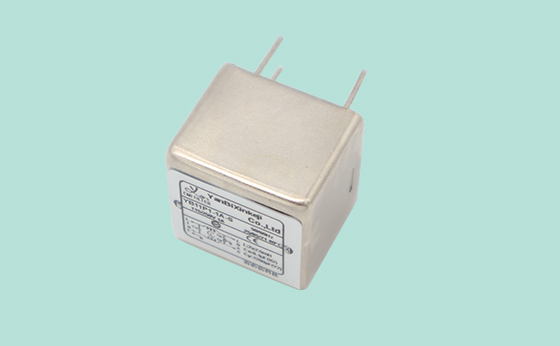

Features 产品特点

Can be used to cover a broad range of usage and they offer a good size/amperage

--紧凑的体积，能够应用在各种场合中。

PCB through hole mounting.

--PCB通孔安装

There are a variety of parts and combinations to meet different customers' EMC tests

--有多种零件组合搭配，来满足不同客户整机EMC测试

Customized products according to customers' requirements

--可按客户要求定制不同规格产品

Typical Applications 应用范围

Electrical and electronic equipment

--电子电气设备

Medical equipment

--医疗设备

Single-phase power supplies, switch-mode power supplies

--单相电源，开关模式电源

Small to medium-sized machines and?household equipment

--中小型机械设备和家用设备

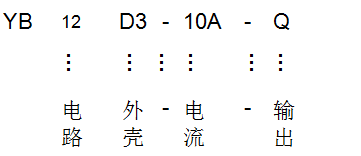

命名原则说明

Tabulates 产品列表

Model No.

Rated Current @40°C 额定电流

Terminal Options 输出方式

Leakage current  250V/50Hz 漏电流

Electrical  Schematic 电路图

Rated  Voltage(V)     额定电压

Operating  Frequency(Hz) 工作频率

型号

YB11P1-1A-S

1A

-

S

-

<0.8mA

Fig.1

115/250V

50/60Hz

YB11P1-3A-S

3A

-

S

-

Fig.1

YB11P1-6A-S

6A

-

S

-

Fig.1

YB11P2-1A-S

1A

-

S

-

Fig.1

YB11P2-3A-S

3A

-

S

-

Fig.1

YB11P2-6A-S

6A

-

S

-

Fig.1

YB11P3-1A-S

1A

-

S

-

Fig.1

YB11P3-3A-S

3A

-

S

-

Fig.1

YB11P3-6A-S

6A

-

S

-

Fig.1

YB12P3-1A-S

1A

-

S

-

Fig.2

YB12P3-3A-S

3A

-

S

-

Fig.2

YB12P3-6A-S

6A

-

S

-

Fig.2

医疗专用产品列表

Model No.

Rated Current @40°C 额定电流

Terminal Options 输出方式

Medical equipment 医疗专用 5

Leakage current  250V/50Hz 漏电流

Electrical  Schematic 电路图

Rated  Voltage(V)    额定电压

Operating  Frequency(Hz) 工作频率

型号

YB11P1-1A-S(5)

1A

-

S

-

5

<5μA

Fig.3

115/250V

50/60Hz

YB11P1-3A-S(5)

3A

-

S

-

5

Fig.3

YB11P1-6A-S(5)

6A

-

S

-

5

Fig.3

YB11P2-1A-S(5)

1A

-

S

-

5

Fig.3

YB11P2-3A-S(5)

3A

-

S

-

5

Fig.3

YB11P2-6A-S(5)

6A

-

S

-

5

Fig.3

YB11P3-1A-S(5)

1A

-

S

-

5

Fig.3

YB11P3-3A-S(5)

3A

-

S

-

5

Fig.3

YB11P3-6A-S(5)

6A

-

S

-

5

Fig.3

YB12P3-1A-S(5)

1A

-

S

-

5

Fig.4

YB12P3-3A-S(5)

3A

-

S

-

5

Fig.4

YB12P3-6A-S(5)

6A

-

S

-

5

Fig.4

        *Q: Fast-on 6.35x0.8mm   S: Pin Φ1.0mmW: Wire UL1015 18AWG

Electrical schematic 电路图
 Standard type

                         Fig.1                                                       Fig.2

                           Fig.3                                                      Fig.4

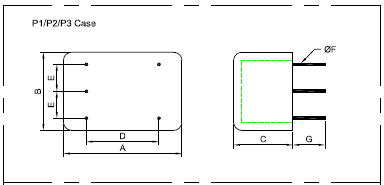

Mechanical Dimension外形图(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入损耗(50欧姆测试系统，IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                       11-1A                                                      11-3A

                      11-6A                                                              37-1A

                     37-3A                                                             37-6A
