Technical Data 技术参数

Protection against interference voltage from the maims

--防止干扰电压

Used as a mains input filter, YX91 filters increase the conducted immunity and thus contribute to system reliability

--作为一个主电源输入滤波器，YX91滤波器抑制传导干扰，从而有助于系统的可靠性

Customized products according to customers' requirements

--可按客户要求定制不同规格产品

Typical Applications 应用范围

Mainframe computer systems

--大型计算机系统

High power office equipment

--大功率办公设备

UPS/SMPS

--UPS/开关电源

Installations comprising automation equipment

--设备包含自动化设备

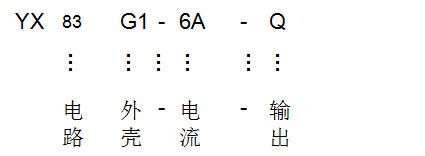

命名原则说明

Tabulates 产品列表

Model No.

Rated Current @40°C 额定电流

Terminal Options* 输出方式

Leakage current 440V/50Hz 漏电流

Electrical  Schematic 电路图

Rated  Voltage(V)     额定电压

Operating  Frequency(Hz) 工作频率

型号

YX91G1-3A

3A

Q

S

T

<5.0mA

Fig.1

250/440V

50/60Hz

YX91G1-6A

6A

Q

S

T

Fig.1

YX91G1-10A

10A

Q

S

T

Fig.1

YX91G2-15A

20A

Q

S

T

Fig.1

YX91G2-20A

30A

-

S

T

Fig.1

YX91G2-25A

30A

-

S

T

Fig.1

YX91G2-30A

40A

-

S

T

Fig.1

YX91G3-35A

40A

-

S

T

<7.0mA

Fig.1

YX91G5-50A

50A

-

S

T

Fig.1

YX91G5-60A

60A

-

S

T

Fig.1

YX91G5-80A

80A

-

S

T

<10.0mA

Fig.1

YX91G4-100A

100A

-

S

T

Fig.1

YX91G6-150A

150A

-

S

T

<15.0mA

Fig.1

YX91G6-200A

200A

-

S

T

Fig.1

*Q: Fast-on 6.35x0.8mm      S: Screw lug     W: Wire UL1015 18AWG

Electrical schematic 电路图

                            Standard type

                                Fig.1

Mechanical Dimension外形图(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入损耗(50欧姆测试系统，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                           6/10A                                                   20/30A

                          40/50A                                                        80A

                         100/200A
