Approvals(认证):

Technical Data 技术参数

Features 产品特点

Protection against interference voltage from the maims

--防止干扰电压

Easy connection terminal block, with safety protection

--新型端子台，接线简便，附安全保护盖

Customized products according to customers' requirements

--可按客户要求定制不同规格产品

Typical Applications 应用范围

For photovoltaic systems and industrial applications

--光伏系统和工业应用

Three-phase motor drives

--三相电机

UPS/SMPS

--UPS/开关电源

Industrial automation equipment

--工业自动化设备

命名原则说明

Tabulates 产品列表

Model No.

Rated Current @40°C 额定电流

Terminal  Options* 输出方式

Leakage current  440V/50Hz 漏电流

Electrical  Schematic 电路图

Rated  Voltage(V) 额定电压

Operating  Frequency(Hz) 工作频率

型号

YX81G5-10A-T

10A

-

-

T

<1.0mA

Fig.1

250/440V

50/60Hz

YX81G5-20A-T

20A

-

-

T

Fig.1

YX81G5-30A-T

30A

-

-

T

Fig.1

YX81G5-40A-T

40A

-

-

T

Fig.1

YX81G5-50A-T

50A

-

-

T

Fig.1

YX81G5-60A-T

60A

-

-

T

Fig.1

YX81G5-80A-T

80A

-

-

T

<2.0mA

Fig.1

YX81G5-100A-T

100A

-

-

T

Fig.1

YX81G5-120A-T

120A

-

-

T

<5.0mA

Fig.1

YX81G5-160A-T

160A

-

-

T

Fig.1

*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block

Electrical schematic 电路图

Standard type

                         Fig.1

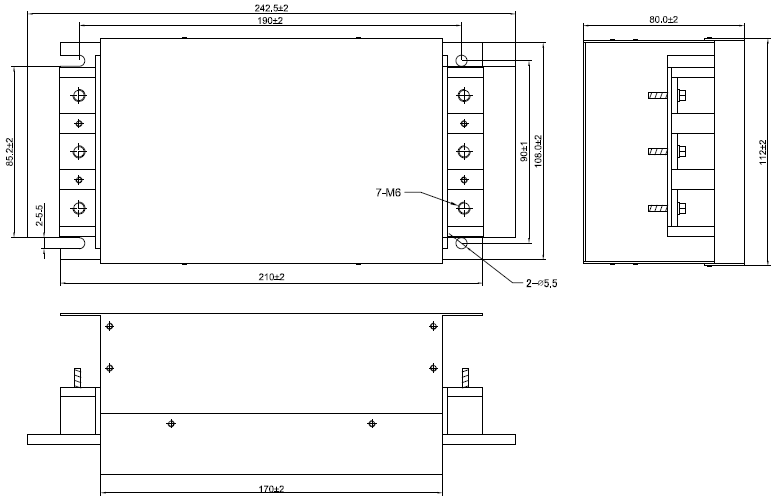

Mechanical Dimension外形图(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入损耗(50欧姆测试系统，IEC/CISPR No.17)

——————    共模(common mode)             — — — — —   差模(differential mode)

                          6/10A                                                          20A

                           30A                                                           10/50A

                        100/200A
