Approvals(认证):

Technical Data 技术参数

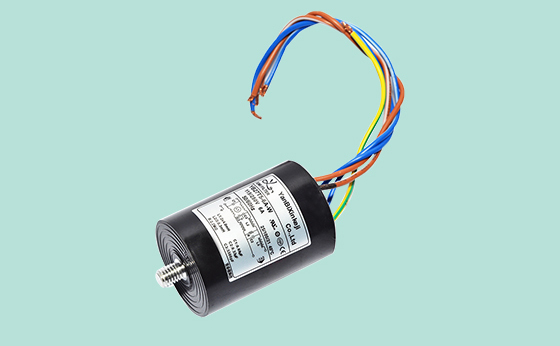

Easy to install with stud type or bracket type for assembly

--安装简单，可以搭配支架或卡扣设计

There are a variety of parts and combinations to meet different customers' EMC tests

--有多种零件组合搭配，来满足不同客户整机EMC测试

Customized products according to customers' requirements

--可按客户要求定制不同规格产品

Typical Applications 应用范围

Washing machine

--洗衣机

Coffee machine

--咖啡机

Vending machine

--自动贩卖机

Dish washer and other white goods

--洗碗机和其他家用电器

命名原则说明

Tabulates 产品列表

Model No.

Rated Current @40°C 额定电流

Terminal Options 输出方式

Leakage current  250V/50Hz 漏电流

Electrical  Schematic 电路图

Rated  Voltage(V)     额定电压

Operating  Frequency(Hz) 工作频率

型号

YB21T5-1A

1A

Q

-

W

<0.8mA

Fig.1

115/250V

50/60Hz

YB21T5-4A

4A

Q

-

W

Fig.1

YB21T6-10A

10A

Q

-

W

Fig.1

YB27T5-1A

1A

Q

-

W

Fig.1

YB27T5-4A

4A

Q

-

W

Fig.1

YB27T6-1A

1A

Q

-

W

Fig.1

YB27T6-4A

4A

Q

-

W

Fig.1

YB27T6-6A

6A

Q

-

W

Fig.1

 *Q: Fast-on 6.35x0.8mm      S: Pin Φ1.0mm     W: Wire UL1015 18AWG

Electrical schematic 电路图

                         Standard type                                                       5 type

                                Fig.1                                                                 Fig.2

Mechanical Dimension外形图(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入损耗(50欧姆测试系统，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                            10A                                                        16A
