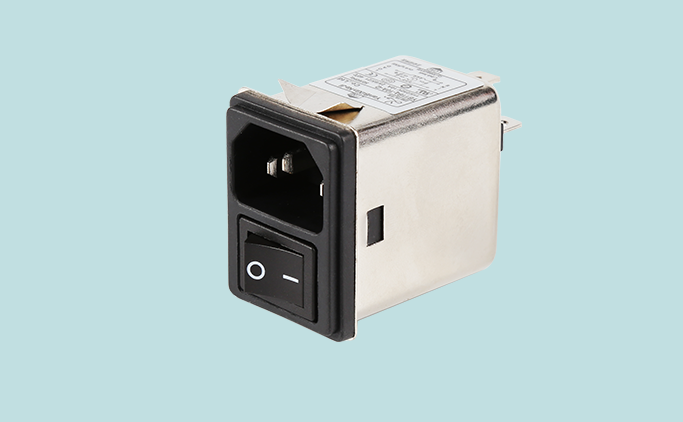

Technical Data 技术参数

Versions to 10A are available with fuse holder for one or two (5*20mm) fuses

--最高达到10A有一个或两个(5*20mm)保险丝

There are a variety of parts and combinations to meet different customers' EMC tests

--有多种零件组合搭配，来满足不同客户整机EMC测试

Customized products according to customers' requirements

--可按客户要求定制不同规格产品

Typical Applications 应用范围

Portable electrical and electronic equipment

--便携式电器和电子设备

Medical equipment

--医疗设备

Test and measurement equipment

--测量测试设备

Small to medium-sized machines and household equipment

--中小型机械设备和家用设备

Single-phase power supplies,switch-mode power supplies

--单相电源，开关电源

命名原则说明

Model No.

Rated Current @40°C 额定电流

Terminal  Options* 输出方式

Bleeder resistor (optional) 泄放电阻R(可选)

接地电感 G(可选)

Leakage current  250V/50Hz 漏电流

Electrical  Schematic 电路图

Rated  Voltage(V)   额定电压

Operating  Frequency(Hz) 工作频率

型号

YB11B3-1A

1A

Q

S

-

-

-

<0.8mA

Fig.1

115/250V

50/60Hz

YB11B3-2A

2A

Q

S

-

-

-

Fig.1

YB11B3-3A

3A

Q

S

-

-

-

Fig.1

YB11B3-4A

4A

Q

S

-

-

-

Fig.1

YB11B3-6A

6A

Q

S

-

-

-

Fig.1

YB11B3-8A

8A

Q

S

-

-

-

Fig.1

YB11B3-10A

10A

Q

S

-

-

-

Fig.1

医疗专用产品列表

Model No.

Rated Current @40°C 额定电流

Terminal  Options 输出方式

Bleeder resistor (optional) 泄放电阻R(MΩ)

Medical equipment 医疗专用 5

接地电感 G

Leakage current  250V/50Hz 漏电流

Electrical  Schematic 电路图

Rated  Voltage(V)     额定电压

Operating  Frequency(Hz) 工作频率

型号

YB11B3-1A-x(R5)

1A

Q

S

-

1

5

-

<5μA

Fig.4

115/250V

50/60Hz

YB11B3-2A-x(R5)

2A

Q

S

-

1

5

-

Fig.4

YB11B3-3A-x(R5)

3A

Q

S

-

1

5

-

Fig.4

YB11B3-4A-x(R5)

4A

Q

S

-

1

5

-

Fig.4

YB11B3-6A-x(R5)

6A

Q

S

-

1

5

-

Fig.4

YB11B3-8A-x(R5)

8A

Q

S

-

1

5

-

Fig.4

YB11B3-10A-x(R5)

10A

Q

S

-

1

5

-

Fig.4

          *Q: Fast-on 6.35x0.8mm      S: solder 4.0x0.8mm      W: Wire UL1015 18AWG

Electrical schematic 电路图

                            Standard type                                                   Lg typ

                                 Fig.1                                                                Fig.2

                              B3S type                                                              R5 type

                                   Fig.3                                                                   Fig.4

Mechanical Dimension外形图(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入损耗(50欧姆测试系统，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                                       1A                                                                            3A

                                       6A                                                                             8A

                                       10A
